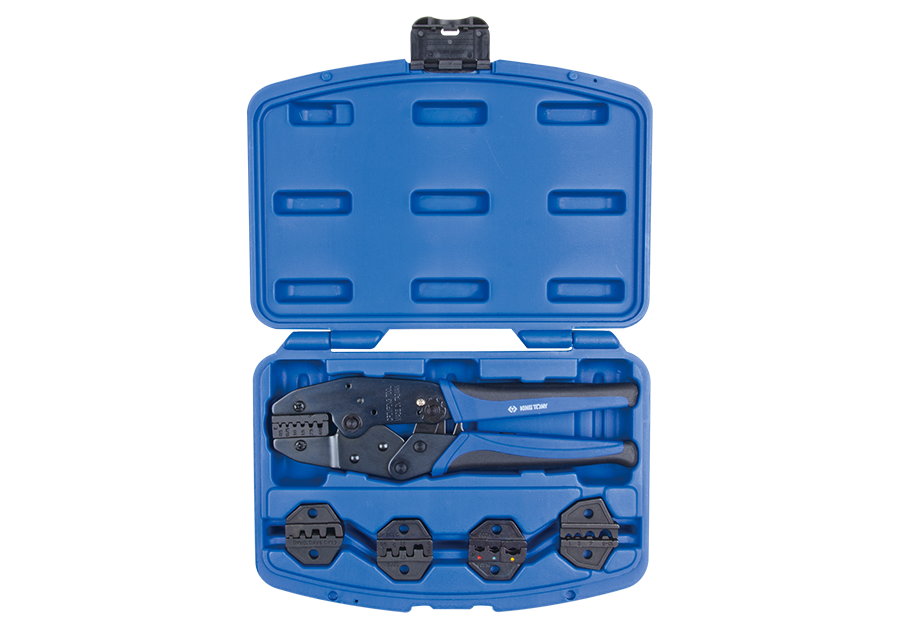

The 5PC Interchangeable Ratchet Crimping Set is a professional electrical crimping kit designed to deliver secure, accurate, and consistent crimps on a wide variety of electrical terminals and connectors. Featuring a durable ratchet crimping handle with interchangeable crimping dies, this versatile set allows technicians to work with insulated terminals, non-insulated terminals, ferrules, pin terminals, and inter-locking connectors using a single tool.

The ratchet mechanism applies uniform crimping pressure to ensure reliable electrical connections while reducing hand fatigue during repetitive work. The quick-change die system allows fast switching between different crimping applications, making the tool ideal for electricians, automotive technicians, industrial maintenance professionals, and control panel builders.

Supporting multiple AWG wire sizes and metric cable sizes, the set is suitable for electrical installations, automotive wiring repairs, marine applications, telecommunications, and industrial control systems. Manufactured from high-quality hardened steel, the crimping dies provide long service life and consistent performance in demanding environments.

Whether you’re assembling electrical panels, installing wiring systems, or repairing vehicle electrical circuits, the 5PC Interchangeable Ratchet Crimping Set provides professional-quality crimping with maximum versatility.

Features

• Professional 5-piece ratchet crimping tool set.
• Quick-change interchangeable crimping dies.
• Ratchet mechanism ensures consistent crimping pressure.
• Suitable for insulated and non-insulated terminals.
• Compatible with ferrules, pin terminals, and inter-locking connectors.
• Covers a wide range of AWG and metric wire sizes.
• Ergonomic handles reduce operator fatigue.
• Hardened steel dies for long service life.
• Ideal for professional electrical and automotive applications.
• Supplied in a convenient storage case for easy organization.

Usage

The 5PC Interchangeable Ratchet Crimping Set is ideal for:

• Electrical wiring installations.
• Automotive electrical repairs.
• Control panel assembly.
• Cable harness manufacturing.
• Industrial electrical maintenance.
• Marine electrical systems.
• Telecommunications wiring.
• Appliance repair.
• Solar power installations.
• Professional electrician and workshop applications.

Specifications

Included Components

67GHP01 – Insulated Terminal Crimping Die

Terminal Size

• AWG 22–18
• AWG 16–14
• AWG 12–10
• 0.5–1.0MM²
• 1.5–2.5MM²
• 4–6MM²

Application

• Insulated terminals

67GJP01 – Ferrule & Pin Terminal Crimping Die

Terminal Size

• AWG 10
• AWG 8
• AWG 6
• 6MM²
• 10MM²
• 16MM²

Application

• Insulated and non-insulated pin terminals
• Wire ferrules

67GKP01 – Inter-Locking & Non-Insulated Terminal Die

Terminal Size

• AWG 22–18
• AWG 16–14
• AWG 12–10
• 0.5–1.0MM²
• 1.5–2.5MM²
• 4–6MM²

Application

• Inter-locking terminals
• Non-insulated terminals

67GLP01 – Non-Insulated Terminal Crimping Die

Terminal Size

• AWG 20–18
• AWG 16–14
• AWG 12–10
• AWG 8
• 1.5MM²
• 2.5MM²
• 6MM²
• 10MM²

Application

• Non-insulated terminals

67GNP01 – Pin Terminal & Ferrule Crimping Die

Terminal Size

• AWG 22
• AWG 20
• AWG 18
• AWG 16
• AWG 14
• AWG 12
• 0.5MM²
• 0.75MM²
• 1.0MM²
• 1.5MM²
• 2.5MM²
• 4.0MM²

Application

• Insulated and non-insulated ferrules
• Pin terminals

Additional Component

• 67GN-09 – Ratchet Crimping Handle

Package Includes

• 1 × Ratchet Crimping Handle (67GN-09)
• 1 × Insulated Terminal Crimping Die (67GHP01)
• 1 × Ferrule & Pin Terminal Crimping Die (67GJP01)
• 1 × Inter-Locking & Non-Insulated Terminal Die (67GKP01)
• 1 × Non-Insulated Terminal Crimping Die (67GLP01)
• 1 × Pin Terminal & Ferrule Crimping Die (67GNP01)
• 1 × Storage Case

Note: The manufacturer identifies this product as a 5PC Interchangeable Ratchet Crimping Set. The package includes the ratchet handle and interchangeable crimping die sets as listed above.

Why Choose This 5PC Interchangeable Ratchet Crimping Set?

The 5PC Interchangeable Ratchet Crimping Set is an excellent choice for professionals who require one versatile tool for multiple crimping applications. With interchangeable dies for insulated terminals, non-insulated terminals, ferrules, and pin terminals, it eliminates the need for multiple dedicated crimpers. The precision ratchet mechanism ensures consistent crimping force for secure electrical connections, while the ergonomic design and durable construction make it ideal for electricians, automotive technicians, industrial maintenance professionals, and electrical installers.
