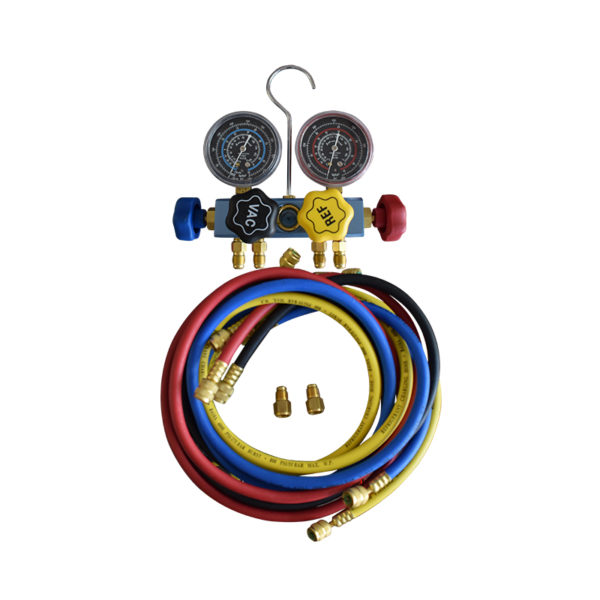

Aluminum 4 Way R410 AC Manifold Gauge Set with Sight Glass 80MM

The Aluminum 4 Way R410 AC Manifold Gauge Set with Sight Glass 80MM (SKU: 9G4107) is a professional-grade HVAC refrigerant charging and diagnostic tool designed for air conditioning technicians and refrigeration specialists. This R410A manifold gauge set helps measure refrigerant pressure, perform vacuum checks, and support accurate AC system servicing.

Built with a durable aluminum body, this 4-way refrigerant manifold gauge provides excellent strength while remaining lightweight for easy handling during field operations. The integrated 80mm sight glass allows technicians to visually monitor refrigerant flow and charging conditions, improving service accuracy.

The set includes four 60-inch color-coded 5/16″ SAE hoses for convenient identification of high pressure, low pressure, vacuum, and charging connections. Equipped with clear pressure scales, this AC pressure testing gauge supports high-pressure R410 refrigerant applications with reliable readings.

This R410A charging manifold features a high-pressure range of 0–800 PSI (0–55 kg/cm²), low-pressure measurement from 0–500 PSI (-1–35 kg/cm²), and vacuum measurement up to 76 in/Hg, making it suitable for a wide range of air conditioning repair and maintenance tasks.

Designed for professional HVAC use, this refrigeration manifold gauge set provides accurate performance, easy operation, and long service life for technicians working on modern cooling systems.

Aluminum 4 Way R410 AC Manifold Gauge Set Features

• Professional R410A AC manifold gauge set for HVAC servicing
• Durable aluminum manifold body for strength and lightweight handling
• 4-way design for refrigerant charging, recovery, vacuum, and testing
• 80mm clear sight glass for monitoring refrigerant flow
• Includes four 60″ color-coded 5/16″ SAE hoses
• Suitable for R410 refrigerant air conditioning systems
• High-pressure gauge range: 0–800 PSI / 0–55 kg/cm²
• Low-pressure gauge range: 0–500 PSI / -1–35 kg/cm²
• Vacuum measurement: 0–76 in/Hg
• Easy-to-read pressure scales
• Reliable tool for AC diagnosis and maintenance

Applications

• Residential air conditioner servicing
• Commercial HVAC maintenance
• Refrigeration system repair
• R410A refrigerant charging operations
• AC pressure testing and leak checking
• Vacuuming and system evacuation work
• Cooling system troubleshooting
• HVAC installation and maintenance projects

Usage

1. Connect the color-coded hoses to the AC system ports.
2. Attach the blue hose for low-pressure side connection and red hose for high-pressure side connection.
3. Use the manifold valves to control refrigerant flow during charging or testing.
4. Monitor pressure readings through the gauges and check refrigerant movement using the sight glass.
5. Perform vacuum operations before refrigerant charging when required.
6. Disconnect hoses safely after completing AC service work.

Product Type: HVAC Refrigerant Service Tool
Suitable For: R410A Air Conditioning & Refrigeration Systems
